Products / CGP175
Air-Cooled Motorcycle Engine
CGP175 Engine
CGP175 is a air-cooled motorcycle engine for two-wheel motorcycles, suitable for OEM supply, replacement projects, customization programs and overseas bulk purchasing.

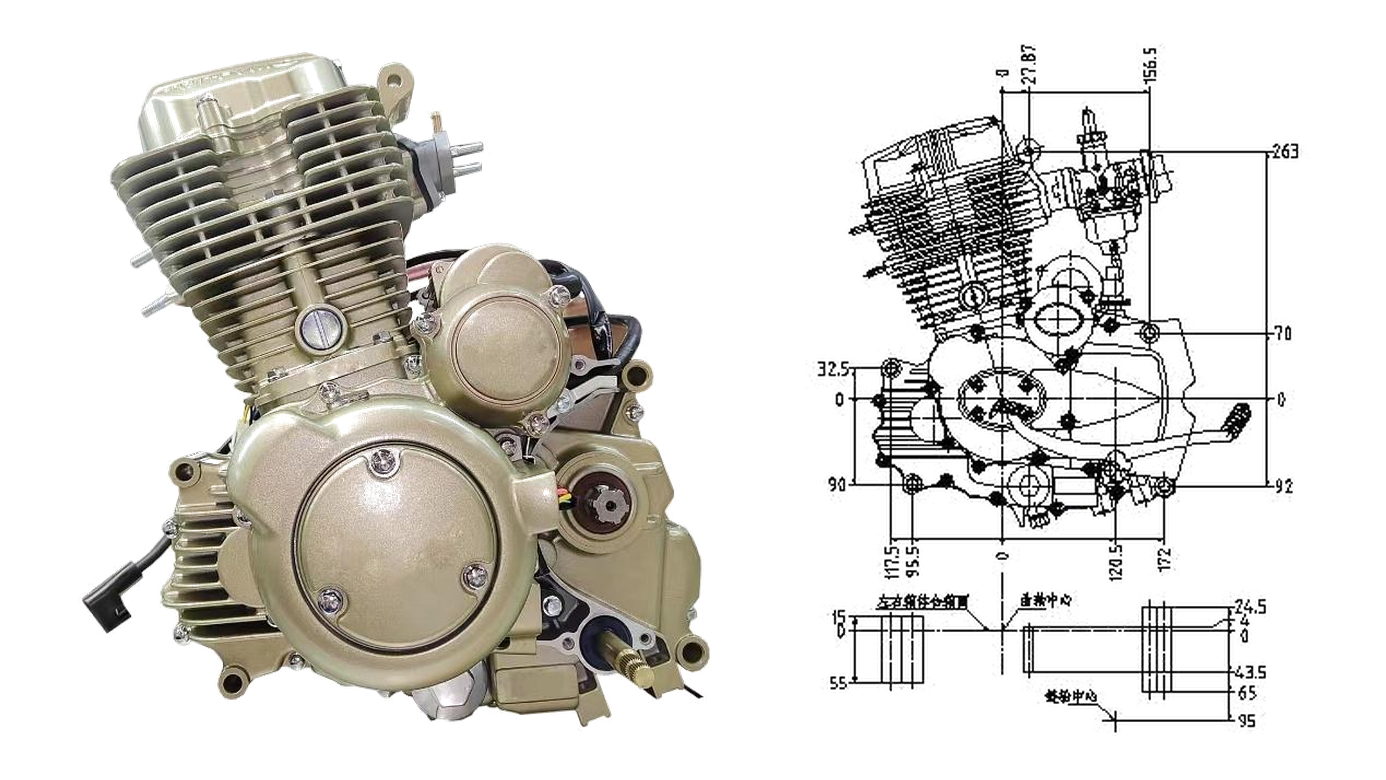

Mounting Drawing
Mounting Drawing
Technical Data
Complete Technical Specifications
Basic Product Information
Product Name CGP175
Engine Name CGP175
Engine Model 162FMK-M
Compatible Vehicle Two-wheel motorcycles
Product Type Two-wheel powertrain / Off-road powertrain
Main Technical Specifications
Engine Type Single cylinder,4-stroke,air-cooling, Manual clutch,External balance shaft
Displacement (ml) 175
Max. Power (kw/r/min) 9.5/8000
Max. Torque (N.m/r/min) 12/6500
Compression Ratio 9.2:1
Bore and Stroke (mm x mm) 62×58
Ignition Method CDI
Lubrication Method Pressure and Splash
Min. Fuel Consumption (g/Kw.h) ≤354
Starting Method kick
Clutch Method Manual Wet Multi-Plate
Gearshift Method Constant mesh, two stage transmission ,5-speed Gearshift
Product Highlights
Product Highlights
Performance Design
Designed for stable engine performance, practical durability and reliable matching with target vehicle applications.
Performance Design
Designed for stable engine performance, practical durability and reliable matching with target vehicle applications.
Heated Crankcase Assembly
Heated crankcase assembly and locating-pin design help reduce crankshaft movement noise and improve engine performance.
Performance Design
Designed for stable engine performance, practical durability and reliable matching with target vehicle applications.
High-Quality Piston Rings
DLC and PVD piston-ring technology improves wear resistance, service life and oil-control performance.
Performance Design
Designed for stable engine performance, practical durability and reliable matching with target vehicle applications.
Optimized Camshaft Profile
Optimized cam profile improves power and torque delivery, especially during launch and overtaking acceleration.
Enlarged Shift Drum
A larger shift drum with smoother guide grooves helps deliver cleaner and more stable gear changes.
Send Inquiry
Need to confirm supply and configuration for CGP175?
Leave your target market, purchase quantity and vehicle application. We will help confirm the matching solution based on model and specifications.
